Cooling Tower Of Nuclear Power Plant: Explained & Explored

04 May, 2025

Why do massive, hyperboloid structures, often rising hundreds of feet into the sky, dominate the skylines near power plants? Because these towering behemoths, known as cooling towers, are absolutely essential for the safe and efficient operation of these critical facilities.

The modern world relies heavily on the consistent generation of electricity, and power plants are the engines that drive this critical infrastructure. Within these complex facilities, a fundamental challenge exists: the management of immense amounts of heat. This is where the cooling tower enters the scene, acting as a vital component in the continuous process of energy production. It's a specialized type of heat exchanger. The function of a cooling tower is to release the excess heat (or waste heat) to the atmosphere by cooling down hot fluid (water, in most cases) to a lower temperature. This seemingly simple task is, in reality, a carefully engineered process that ensures the plant operates within safe parameters. The heat has to have some place to go, hence the plant needs cooling. Whether the source is a nuclear reaction, the combustion of fossil fuels, or another energy-generating process, all power plants produce significant quantities of heat as a byproduct. Without proper cooling, this heat could build up to dangerous levels, causing equipment damage or even catastrophic failure.

The shape of most cooling towers is a hyperboloid. They are built this way because the broad base allows for greater area to encourage evaporation, then narrows to increase air flow velocity.

This is particularly true for nuclear power plants. As nuclear reactions generate immense heat to produce steam, that heat needs to be efficiently managed and dissipated. Hence nuclear plants have cooling towers too. The design and operation of these structures are crucial to both the safety of the plant and the protection of the surrounding environment. They are a clear visual marker of nuclear plants.

The Pengze Nuclear Power Plant provides a clear example of these design considerations. A comparison of the cooling towers' design parameters reveals the thermal load, which is significantly higher than that of the power plant.

Wet cooling towers, also known as evaporative cooling towers, are the most common type. They leverage the cooling power of water evaporation to remove heat from processes within power plants. These towers operate by drawing warm water into the tower, where it is spread across fill material to increase the waters surface area. This increased surface area facilitates efficient heat transfer. The water is distributed evenly across the top of the cooling tower using spray nozzles. As the water cascades through the tower, air is drawn upwards, typically by large fans at the top. The combination of water evaporation and air circulation cools the water, which is then recirculated to cool the plant's equipment.

Nuclear power plant cooling towers are designed to maximize the cooling efficiency through a process called evaporative cooling. Heated water from the tertiary cooling loop enters the cooling tower through large pipes. As the water cools, it releases excess heat into the atmosphere as water vapor, and this seemingly simple process involves complex engineering to ensure optimal efficiency.

In the context of siting decisions for new nuclear power plants, and in evaluating the pros and cons of retrofitting cooling towers at existing nuclear power plants, the effectiveness and environmental impact of cooling towers are significant factors. Cooling towers are constructed for plant cooling and to protect aquatic environments. The choice between different cooling technologies, including the potential use of cooling towers, is a complex decision involving considerations of cost, efficiency, and environmental impact.

The design and implementation of cooling towers are not without their challenges. Because of the significant ongoing research on water issues already being performed by industry, the national laboratories and other entities, this report relies heavily on ongoing work. The significant investment in ongoing research and development underscores the importance of this technology.

It's worth noting that cooling towers are not unique to nuclear power plants; other generating facilities such as coal plants and other industrial facilities may also use cooling towers. And, in fact, lots of power plants, refineries, and chemical plants use mechanical draft cooling towers as well. Theyre less dependent on ambient conditions to create the necessary airflow, theyre smaller, usually less expensive to build, and offer some flexibility if heat loads fluctuate. The visual prominence of cooling towers, particularly those associated with nuclear power plants, has made them an enduring symbol of modern energy production.

The standard AP1000 plant cooling system design includes a closed loop. Not all nuclear plants use cooling towers, in some cases they use a large body of water or river to condense the steam back to water.

Category	Details
Type of Structure	Cooling Tower
Primary Function	To dissipate waste heat from power plants into the atmosphere.
Heat Transfer Method	Evaporative Cooling (Wet Cooling Towers) and Convection
Typical Shape	Hyperboloid
Materials of Construction	Concrete, Steel, Fill Materials (for increased surface area)
Common Applications	Nuclear power plants, Coal-fired power plants, Refineries, Chemical Plants, Industrial facilities
Cooling Medium	Water (primarily)
Airflow Mechanism	Natural draft (using the chimney effect in some designs) or Mechanical Draft (using fans)
Key Design Considerations	Thermal load, Evaporation Rate, Airflow Velocity, Environmental Impact (water usage, plume visibility)
Environmental Benefits	Reduces thermal pollution of water bodies, Conserves water (in closed-loop systems)
Environmental Concerns	Water consumption, Plume formation (visible cloud of water vapor), Potential for drift (water droplets carried away by the wind)
Location of Components	Varies based on the type. Typically, the water distribution system is at the top, the fill material is in the middle, and the collection basin is at the bottom
Design Parameters	Height (can exceed 200 meters), Diameter (at the base and throat), Airflow rate, Water flow rate, and Thermal Load
Efficiency Factors	Ambient temperature, humidity, and wind conditions
Impacts in Design and Location	Significant research on water issues already being performed by industry, the national laboratories and other entities, this report relies heavily on ongoing work.
Types	Wet, Dry, Hybrid
Alternative Cooling systems	Cooling ponds, Once-through cooling systems, and Dry cooling systems
Interesting Facts	Cooling towers are not unique to nuclear power plants; other generating facilities such as coal plants and other industrial facilities may also use cooling towers. There are more than 250 cooling towers on power plants across america, and fewer than 100 on nuclear plants.
Example	Pengze Nuclear Power Plant

The design of these structures often involves a hyperboloid shape, chosen for its structural efficiency and ability to promote airflow. The broad base allows for a large surface area to encourage water evaporation, while the narrowing shape increases airflow velocity, enhancing the cooling process. They are built this way because the broad base allows for greater area to encourage evaporation, then narrows to increase air flow velocity.

The sheer scale of these towers is also a testament to the heat loads they must manage. The height of cooling towers in nuclear power plants often exceeds 200 meters. The visual impact of these structures is undeniable, and they have become iconic symbols of modern power generation. People see the massive, sometimes 600 feet high, hyperboloid structures from miles away and immediately associate them with nuclear power plants. Cooling towers are an essential element of the energy production landscape, playing a crucial role in environmental protection and ensuring the safe and reliable operation of power plants. They represent a fundamental engineering solution to the challenge of managing heat in a world increasingly reliant on electricity.

The AP1000 nuclear plant exemplifies efforts to standardize plant design, streamlining construction, licensing, and reducing overall plant costs. The standard AP1000 plant cooling system design includes a closed loop.

Comparing the design parameters of the two cooling towers listed in table 1, it can be found that the thermal load of the cooling towers of the Pengze nuclear power plant is about 1.8 times that of another, demonstrating the magnitude of the task. Furthermore, the presence of more than 250 cooling towers across power plants in America, with fewer than 100 specifically in nuclear plants, illustrates the widespread use of this technology. They are built this way because the broad base allows for greater area to encourage evaporation, then narrows to increase air flow velocity. Not all nuclear plants use cooling towers, in some cases they use a large body of water or river to condense the steam back to water.

In evaluating the existing infrastructure, there is a lot of ongoing research on water issues that are already being performed by industry, the national laboratories and other entities, the report relies heavily on ongoing work. Cooling towers transfer exhaust heat into the air instead of into a body of water. The evolution of cooling tower technology continues, with innovations aimed at improving efficiency, reducing water consumption, and minimizing environmental impact. The challenges associated with managing thermal pollution are significant, and the role of cooling towers in mitigating these impacts is paramount. If cooling towers or portions of cooling towers are required to accomplish the uhs safety

The integration of advanced cooling technologies, alongside a deeper understanding of environmental impacts, will continue to shape the future of power plant design and operation. They heat up water and that heat needs to go somewhere so it does not build up to dangerous levels inside the plant.

Cooling towers are a testament to the engineering ingenuity needed to balance energy production with environmental responsibility. They are constructed for plant cooling and to protect aquatic environments. They're less dependent on ambient conditions to create the necessary airflow, they're smaller, usually less expensive to build, and offer some flexibility if heat loads fluctuate.

As the worlds energy demands evolve, so too will the technology behind cooling towers. The design and implementation of cooling towers are not without their challenges, and the constant innovation will continue to be a focus.

STEAM AND COOLING TOWERS OF A NUCLEAR POWER PLANT Stock Photo Alamy

Details

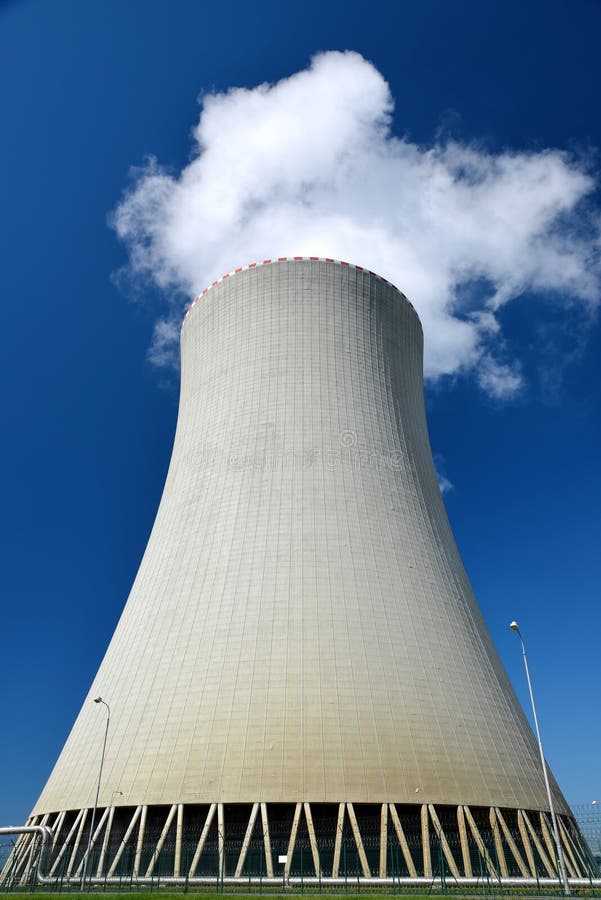

Cooling Tower of Nuclear Power Plant Temelin Stock Image Image of
